This page is about the Kompressor 4 Mini Swirl - ISOFix. If you're looking for the Kompressor 4 Caprice Stripe - ISOFix, please click here.
The Kompressor 4 Mini Swirl is an upgraded and updated version of our popular Kompressor Series 0 – 4 Convertible Car Seat. The Kompressor 4 is an A4 Rearward Facing restraint, allowing Extended Rearward Facing to a large 30-month-old, and then Forward Facing to a large 4-year-old.
Despite the upgrade, it’s still nice and compact at 44cm across the widest point. Thanks to a new, ultra-low-profile base, it’s also 3.5cm shorter than the Kompressor II.

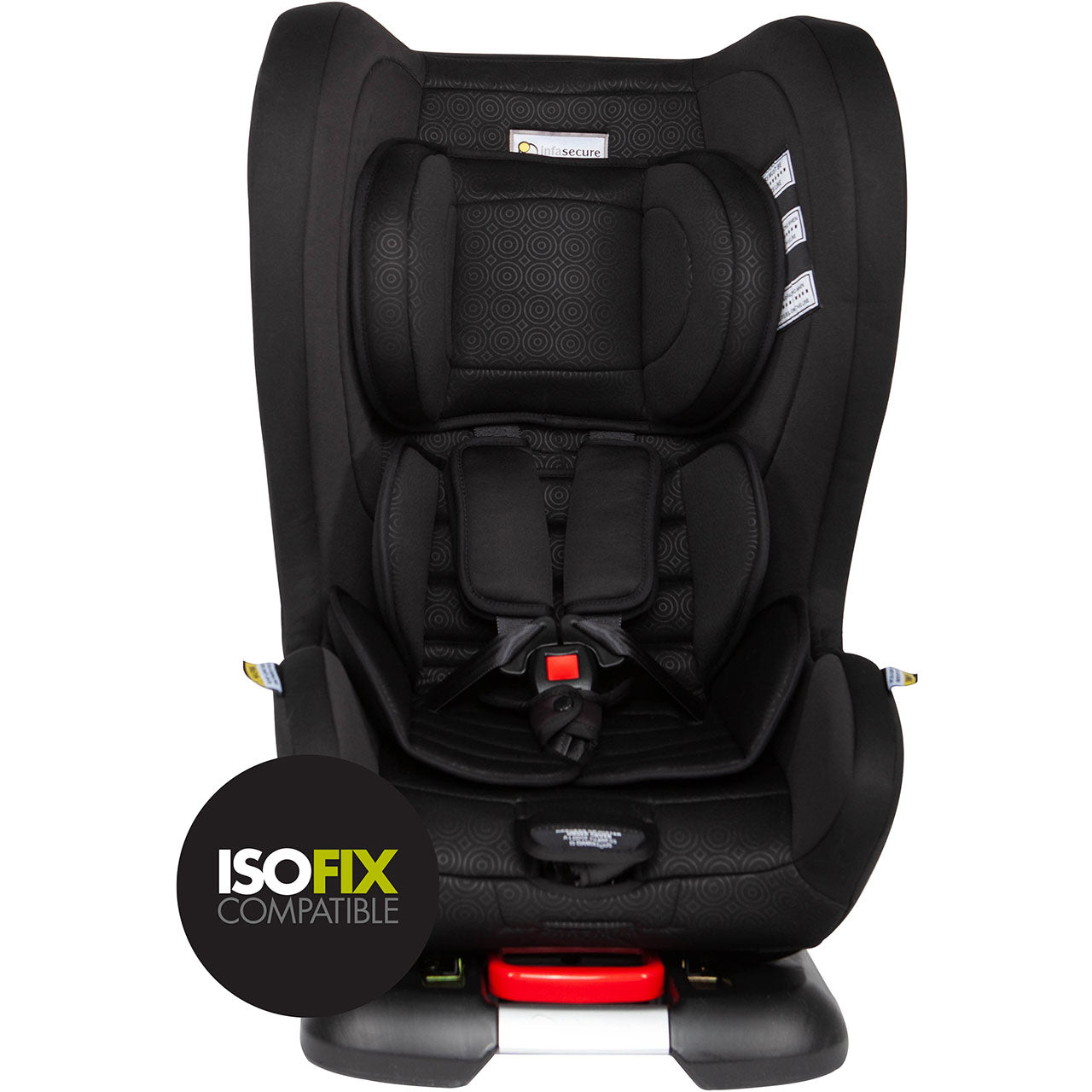

ISOfix Compatible
The Kompressor 4 Mini Swirl features ISOFix compatible installation. The new patented ultra-narrow, ultra-low recline swing base means you can freely access the ISOFix anchorage points in the vehicle without a big bulky base getting in your way.
Our ISOFix connectors feature a unique pull-loop release. This makes uninstalling the restraint much easier than counter-intuitive push-to-pull button release connectors. When not in use, you can store the ISOFix Compatible connectors in purpose-built, hidden compartments inside the restraint’s seat base.
Air Cocoon Technology™ (A.C.T)
Kompressor 4 Mini Swirl features Air Cocoon Technology™ (A.C.T.)This enhances side impact protection through blow moulding design, which dramatically reduces the impact forces during a crash. The blow moulded shell greatly reduces the forces on a child’s head and body in a side-impact accident.
Read MoreModel Number: CS8513CP2
Age Suitability:Birth to 4 Years
Warranty:12 Months (Cover) / Lifetime (Shell) – (Click for Details)
Features
- Extended Rearward Facing to large 30-month-old
- Forward Facing with an internal harness to large 4-year-old
- Compact width – great for 3 across
- Compact rearward facing depth – great for small vehicles
- Comfort Infant Insert, Shoulder Pads, Head Pillow & Crotch Buckle Pad included
- Air Cocoon Technology™(A.C.T.) integrated
- Press-Stud shoulder pads – remove without unthreading for easy cleaning
- Self-adjustable Tether Strap - easily reposition the tether strap to either side of the child restraint shell
- ISOFix compatible installation
- Optional easy install belt path
- 9 recline positions
- Built-in anti-rebound design
- Vehicle Seat Protector included
- SafeGrip Belt Clamp included
Dimensions
- Width (Base) – 34cm
- Width (Base when using ISOFix Install) – 26.5cm
- Width (Arm) – 39cm
- Width (Side Wings) – 44cm
- Height (Top to Bottom) – 68cm
- Depth (Forward Facing) – 50cm
- Depth (Rearward Facing) – 64cm
Approximate Shoulder Height Marker Locations
- Lower Marker (Must Rearward Face Under Marker) – 34cm
- Middle Marker (Turn to Forward Facing) – 39cm
- Upper Marker (Stop Use) – 43.5cm
Instruction Manuals / Support Images
Need help with fitting your child restraint securely to your vehicle?
Click here to search for Child Restraint Fitters near you.
